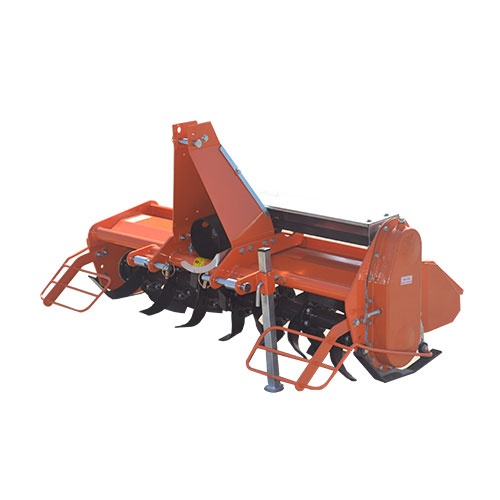

TL Light Duty Rotary Tiller
- Product No.：2024318201510
OVERVIEW
The TL Light Duty Rotary Tiller is designed for soil preparation/cultivation in nursery, orchards, and for gardens.
Suitable for low-powered tractors ,e.g Kubota BX-B, Iseki, Yanmar, John Deere 1-2 Series, Pasquali, etc. 12-30Hp.
BENEFITS & FEATURES
The sideshift of the three-point hitch (120.0 mm) is moved manually by hand.
Adjustable skids to obtain the desired working depth.
|
SPECIFICATIONS
|
ROTARY TILLER
|
|||||
|
LIGHT DUTY
|
||||||
|
Model
|
TL85
|
TL95
|
TL105
|
TL115
|
TL125
|
TL135
|
|
Tractor Engine HP Range
|
15-25hp
|
20-30hp
|
25-35hp
|
30-40hp
|
35-45hp
|
40-50hp
|
|
Hitch
|
Cat1
|
|||||
|
Working Width(mm)
|
850
|
950
|
1050
|
1150
|
1250
|
1350
|
|
Weight(kg)
|
210
|
230
|
250
|
260
|
270
|
280
|
|
NO. of Blade
|
20
|
20
|
24
|
24
|
28
|
28
|
|
Working Depth(mm)
|
Max105mm
|
|||||
|
Gearbox HP Rating
|
30hp
|
|||||
|
Tractor PTO Speed
|
540rpm
|
|||||
|
Driveline Size
|
T4
|
|||||
|
Side Driving
|
Chain Driving
|
|||||
